HR 8260

type SM · family 1AP1 · 26.4 kV maximum anode voltage · H° deflection · 3 windings · 400 g

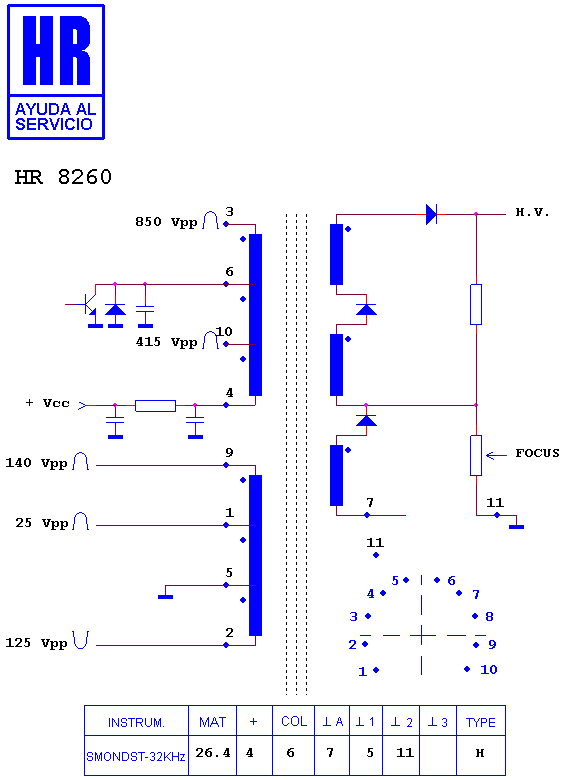

Schematic diagram for HR 8260
schematic

Manufacturer equivalents (7)

1172.0218 · 1172.0228 · 1172.0228B · 20141 · 416931 · 707956201 · HR 8260

Fitted to (2)

NCR 10 XOF 91006 A · NCR MONITOR
