HR 8241

type ST · family 1VP · 39.9 kV maximum anode voltage · 110° deflection · 4 windings · 389 g

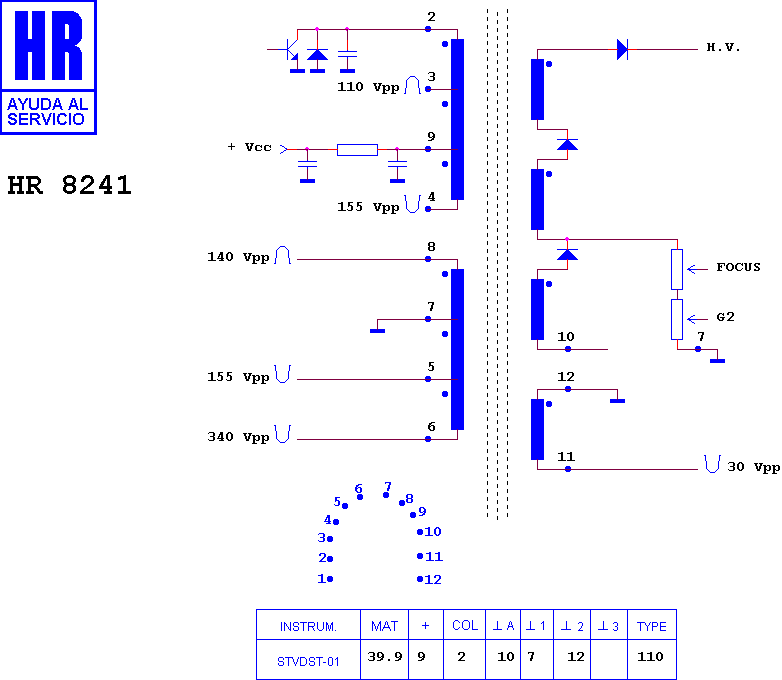

Schematic diagram for HR 8241
schematic

Manufacturer equivalents (4)

3122 268 30831 · 444 50 0023 · 444 50 0023/508 · AT 2091/02 SF

Fitted to (2)

METZ 6393 · METZ CHASIS 693 GA-0026
