HR 8229

type ST · family 1AP1 · 21 kV maximum anode voltage · 90° deflection · 390 g

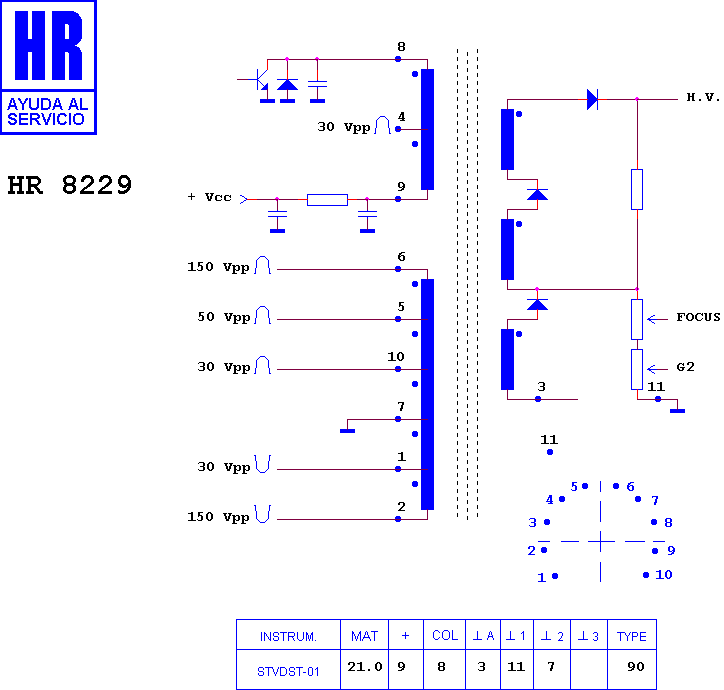

Schematic diagram for HR 8229
schematic

Manufacturer equivalents (2)

F 2082 BM · RTRNF2082BMZZ

Fitted to (2)

SHARP 70 GF 63 E · SHARP CHASIS DA 50 W

Search this part in the full database
