HR 8203

type ST · family 1ACP · 28.8 kV maximum anode voltage · 110° deflection · 434 g

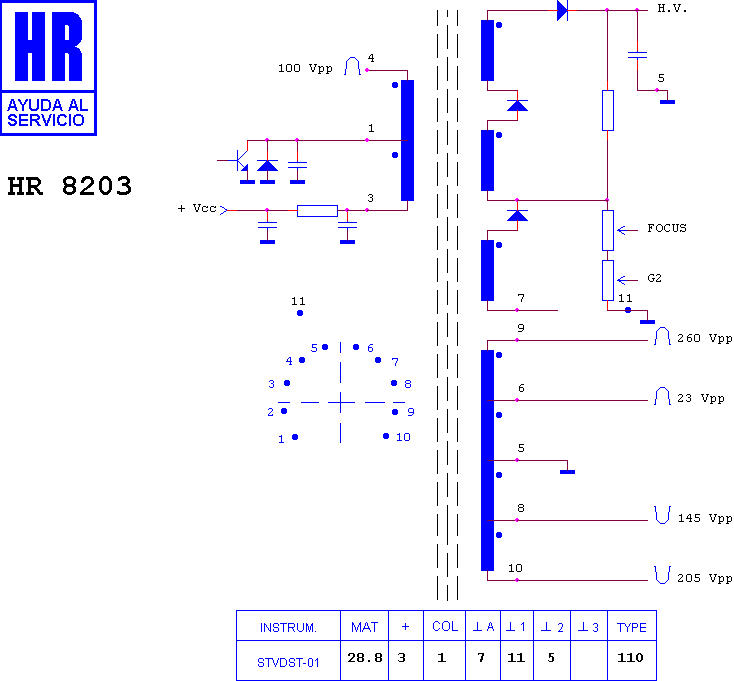

Schematic diagram for HR 8203
schematic

Manufacturer equivalents (2)

28028800/1 · HR 8203
