HR 8197

type SM · family 1ACP · 20 kV maximum anode voltage · L° deflection · 4 windings · 434 g

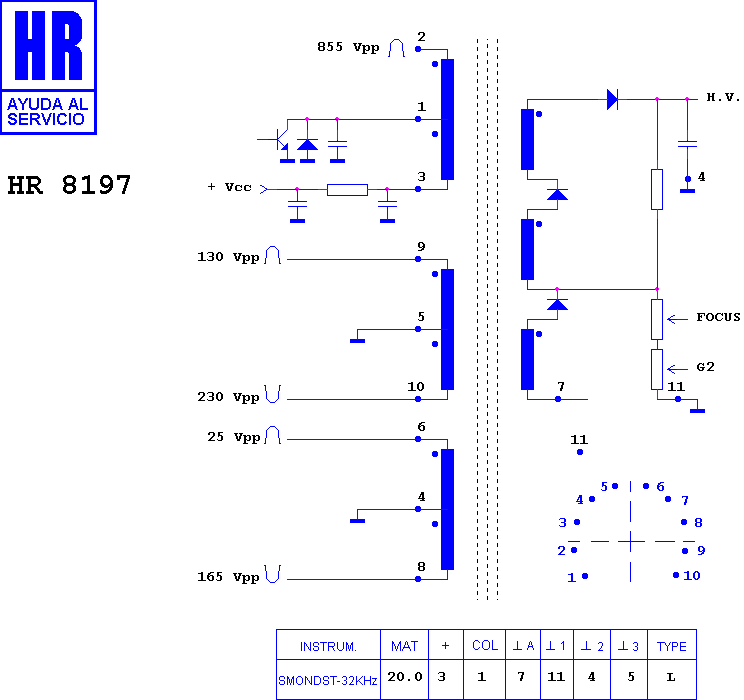

Schematic diagram for HR 8197
schematic

Manufacturer equivalents (6)

1242.0068 · 1242.0068 A · 14721317S · BSC 21-04751 · JT 128 · MAT33370

Fitted to (14)

PHILIPS M 34 EDC 14 X · PHILIPS MONITOR · SELTI MONITOR · SELTI SL 09626 · SELTI SL 415 · SELTI SL 420 · SELTI SL 8140303 · SELTI SL 8500 · SELTI SL 8600 · SELTI SL 861011101 · SELTI SL 861432004 · SELTI SL 8614321004 · SELTI SL 861432300 · SELTI SL 8700
