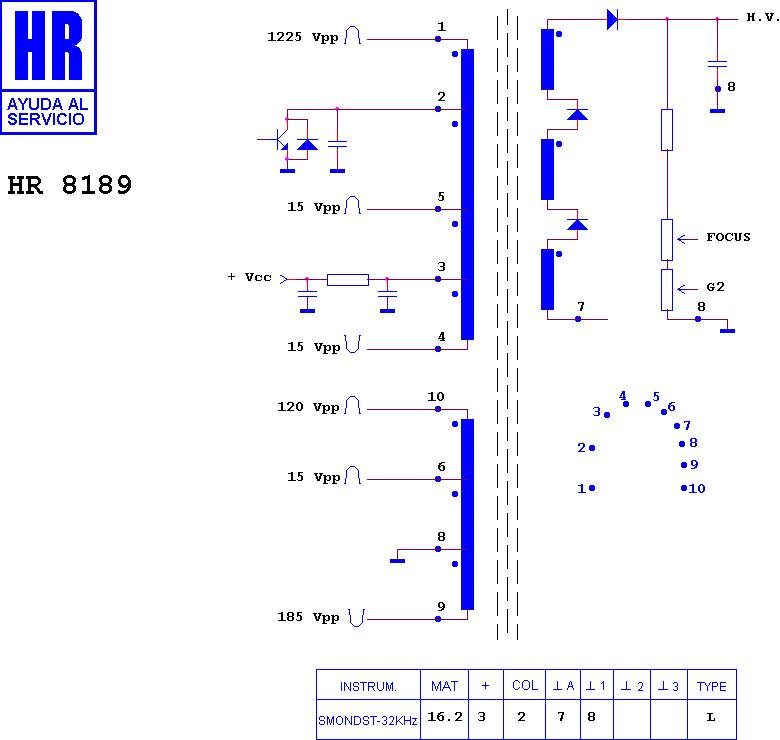

HR 8189

type SM · family 1WP1 · 16.2 kV maximum anode voltage · L° deflection · 3 windings · 444 g

Manufacturer equivalents (15)

4822 140 10765 · 6133048100 · 6133066010 · FEA 448 · FEA 488 · FEA 555 · FSN 14 A 015 · IP 14021 · MAT 33278 · MAT 33313 · TFB 4809 · TFB 4809 OU · TFB 4809-5019 · TFB 4810 · TFB 6601

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7443

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (17)

IBM 6105 · IBM 6442 · IBM 6542-103 · IBM 6542-105 · IBM 6543-103 · IBM G 40 · IBM G 50 · IBM G 540 · IBM MONITOR · PACKARD BELL 7480 · PACKARD BELL MONITOR · PACKARD BELL PB 7480 · PHILIPS 7 CM 0079/00 B · PHILIPS MONITOR · VIEWSONIC E 71 · VIEWSONIC MONITOR · VIEWSONIC VCDTS 21352-1 S

Search this part in the full database
