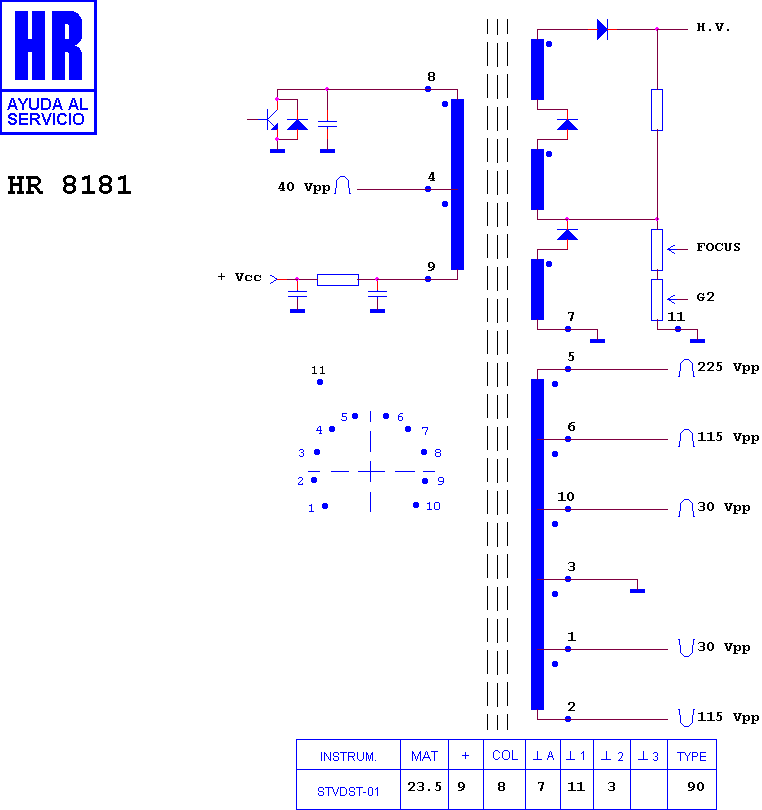

HR 8181

type ST · family 1AP1 · 23.5 kV maximum anode voltage · 90° deflection · 2 windings · 380 g

Manufacturer equivalents (12)

003311196 · CTRNF2074BMV0 · CTRNF2074BMVO · F 2074 BM · F36N.3018 · HR 1AP1 8181 · HR 8181 · M 12-167 · RO 882 · RTRNF2074BMVO · RTRNF2074BMZZ · TR882

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (9)

SHARP 54 GS 61 SN · SHARP 66 GS 62 HS · SHARP 70 GS 61 FP · SHARP 70 GS 61 S · SHARP 70 GS 61 SN · SHARP 70 GS 62 S · SHARP 70 GS 62 SN · SHARP CHASIS CA 10 · SHARP CHASIS GA 10
