HR 8179

type SM · family 1WP1 · 30 kV maximum anode voltage · L° deflection · 2 windings · 461 g

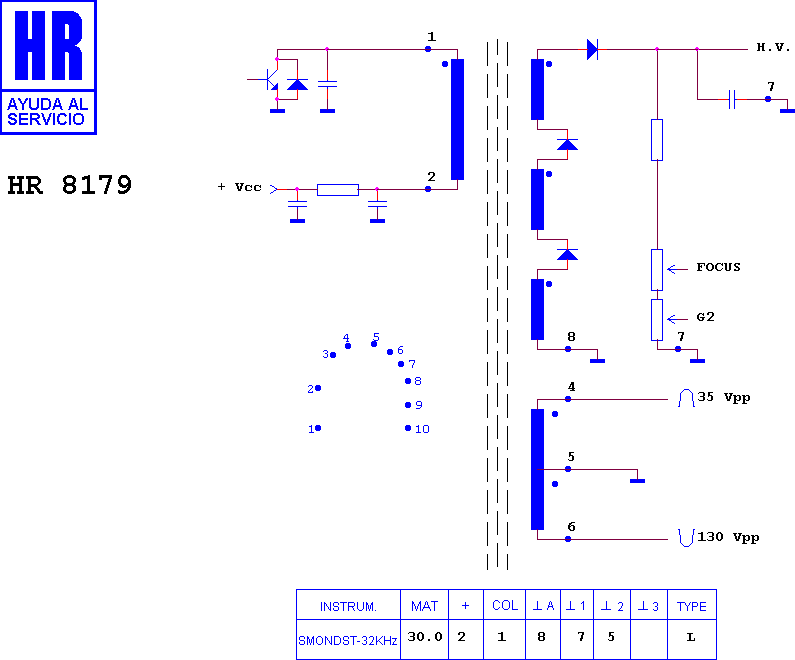

Schematic diagram for HR 8179
schematic

Manufacturer equivalents (5)

3138 118 75500 · 39 L 623 AZT · 39623A · 4822 148 81331 · ETF 39 L 623 AZT

Fitted to (14)

DIGITAL AV 218 BNM · DIGITAL MONITOR · DIGITAL PCXBU-BP · DIGITAL PCXBV-BA · DIGITAL PCXBV-BC · PHILIPS 4 CM 4279/20 · PHILIPS C 4 A 8279/742 · PHILIPS C 4 D 8279 · PHILIPS C 4 E 8279/008 · PHILIPS C 4 F 8299/007 · PHILIPS C 4 F 8299/757 · PHILIPS C 4 G 8279/003 · PHILIPS C 4 G 8279/004 · PHILIPS MONITOR
