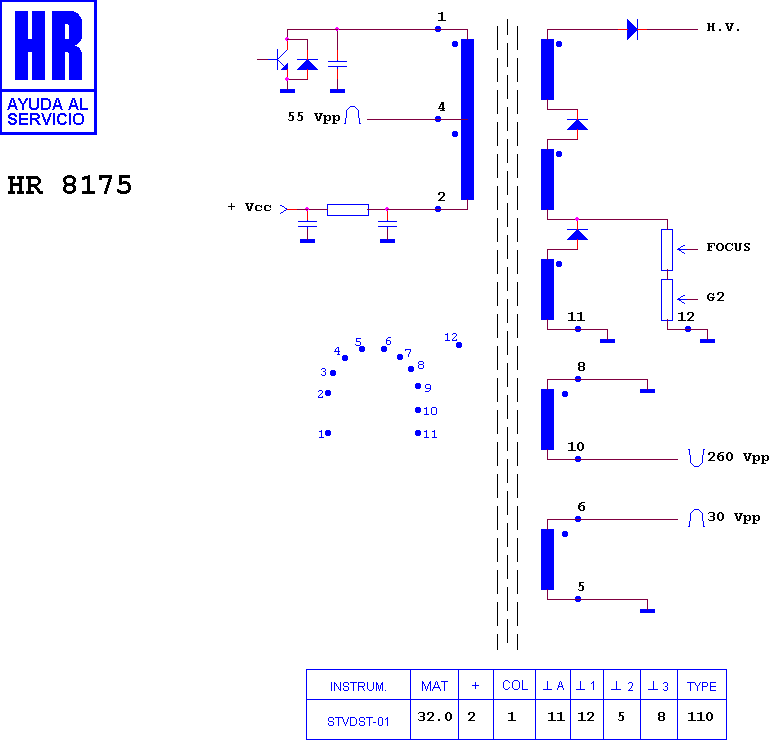

HR 8175

type ST · family 1SP2 · 32 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

Manufacturer equivalents (3)

8-598-843-00 · 8-598-843-40 · NX 1910

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control
• HR 16525 — Screen (G2) control

Fitted to (1)

SONY KV 29 CL 11 K
