HR 8167

18.6 kV maximum anode voltage · L° deflection · 3 windings · 434 g

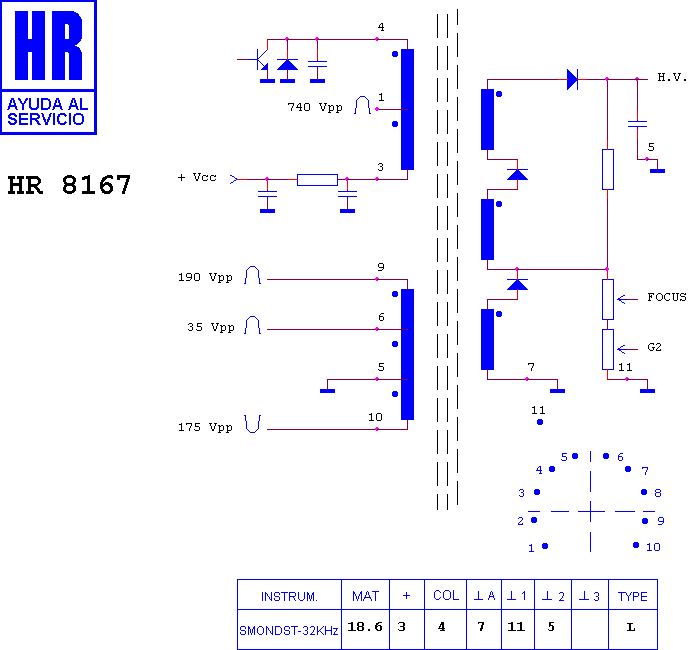

Schematic diagram for HR 8167
schematic
Schematic diagram for HR 8167
schematic (archived)

Manufacturer equivalents (4)

25186013 · 4-019-002 · S31000110 · S31100110

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46229

Fitted to (4)

MONITOR ELECTRONIC SYSTEM M 28 · MONITOR ELECTRONIC SYSTEM MONITOR · SIVIT MONITOR · SIVIT SL 120032500
