HR 8164

type SM · family 1WP1 · 32.5 kV maximum anode voltage · L° deflection · 3 windings · 444 g

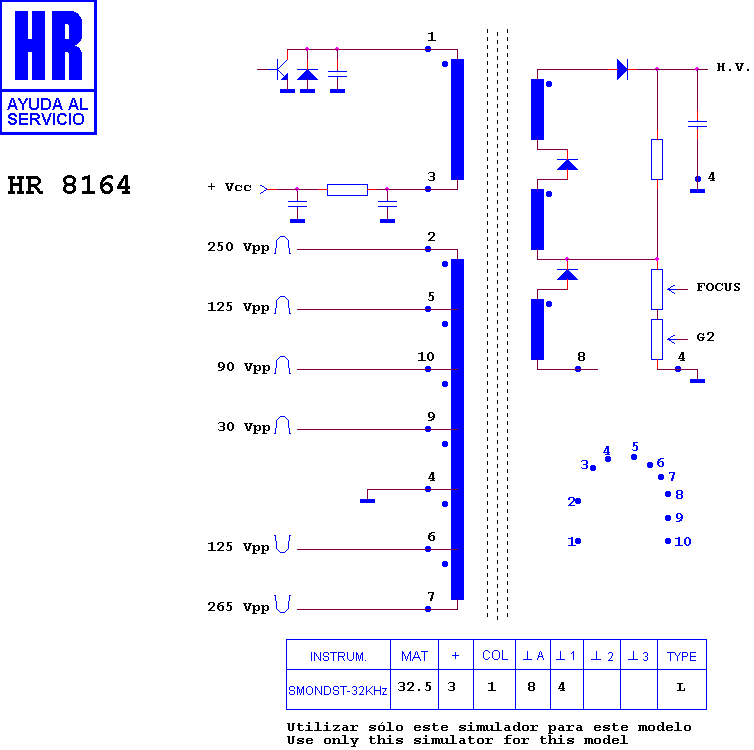

Schematic diagram for HR 8164
schematic
Schematic diagram for HR 8164
pin-out diagram

Manufacturer equivalents (7)

154-064P · 154-177B · 6174 Z 6238 L · FCK-14B047 · FTMPC 11 T 6238 L · JF0501-1206 · JF0501-91802

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6355

Fitted to (6)

LG - GOLDSTAR CF 28 A 50 I · LG - GOLDSTAR CF 29 C 80 I · LG - GOLDSTAR CHASIS PC 63 A · LG - GOLDSTAR CL 29 N 100 X · LG - GOLDSTAR DT 7000 · ORION OT 2910
