HR 8106

type ST · family 1XP1 · 22.4 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

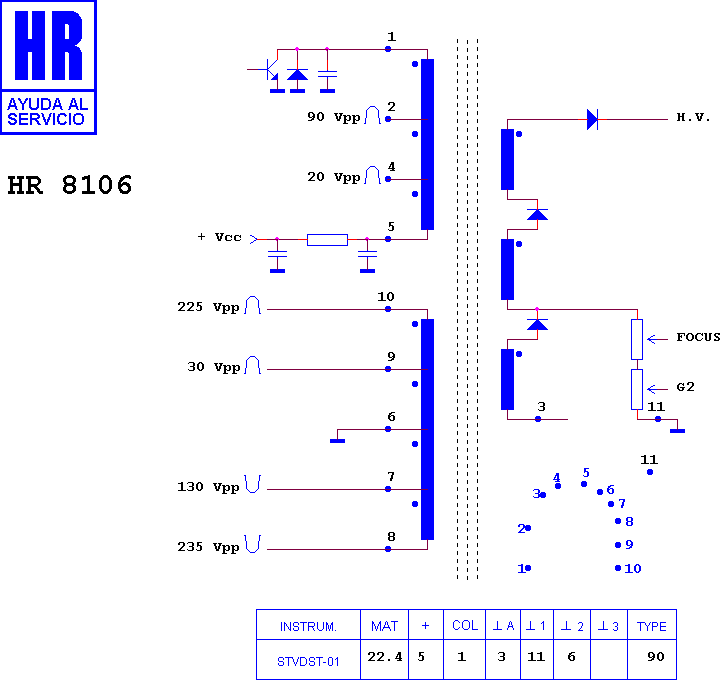

Schematic diagram for HR 8106
schematic

Manufacturer equivalents (4)

KT 6015 · TAT 1406 · TAT 1406 A · TVC/67

Fitted to (4)

CCE HPS 1401 · CCE HPS 1470 V · CCE HPS 1470 Y · CCE HPS 1481 E

Search this part in the full database
