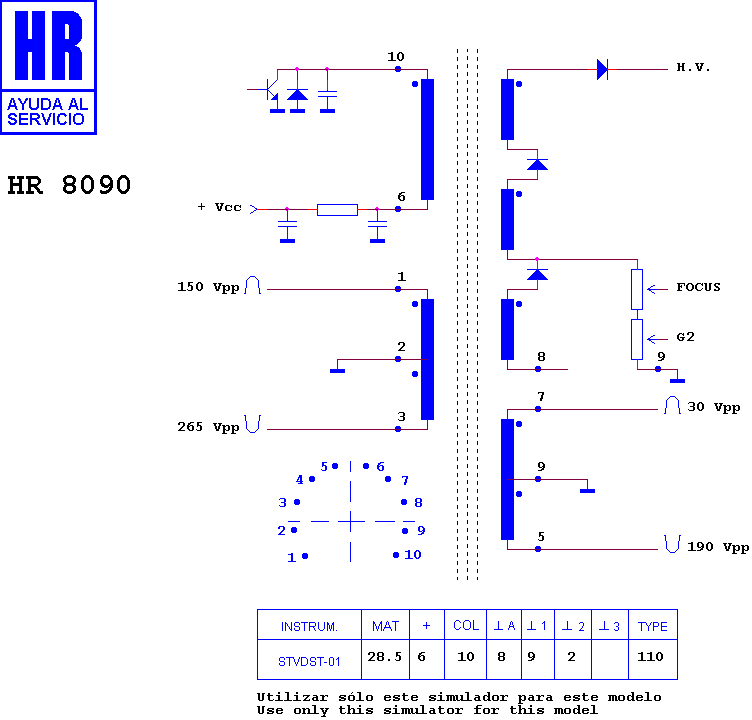

HR 8090

type ST · family 1NP1 · 28.5 kV maximum anode voltage · 110° deflection · 278 g

Manufacturer equivalents (1)

FCC 1415 XL

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (14)

IMTEC 1452 C · IMTEC MONITOR · LEADING TECH. 1452 C · LEADING TECH. MONITOR · PACKARD BELL 1452 CGA · PACKARD BELL CD 1464 · PACKARD BELL MONITOR · ROLAND DC 200 A · ROLAND MONITOR · SAMSUNG CK 4656 · SAMSUNG CK 4656 A · SAMSUNG CK 4656 N · SAMSUNG CK 4656 SN · SAMSUNG MONITOR
