HR 8070

type ST · family 1AS1 · 28.8 kV maximum anode voltage · 110° deflection · 3 windings · 350 g

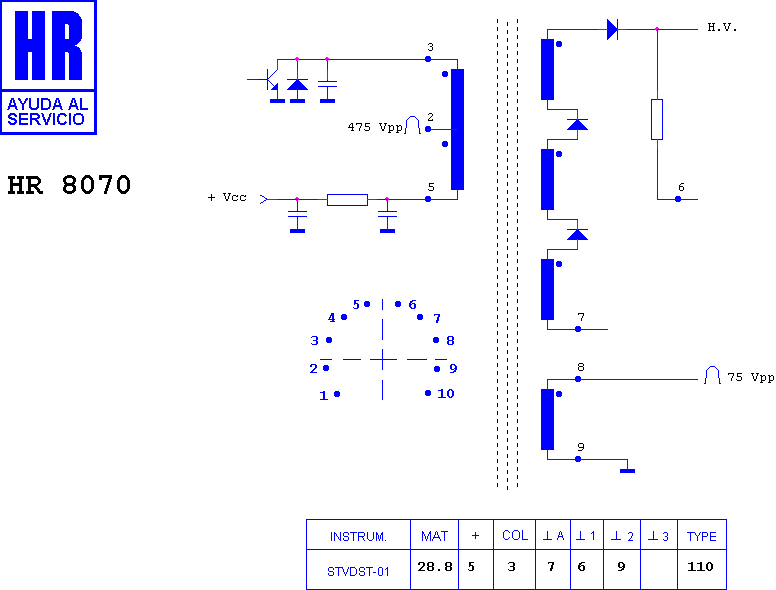

Schematic diagram for HR 8070 — schematic

Schematic diagram for HR 8070 — schematic (archived)

Schematic diagram for HR 8070 — accessory sheet

Manufacturer equivalents (1)

HR 8070

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

HR 16524 — Focus control

Search this part in the full database
