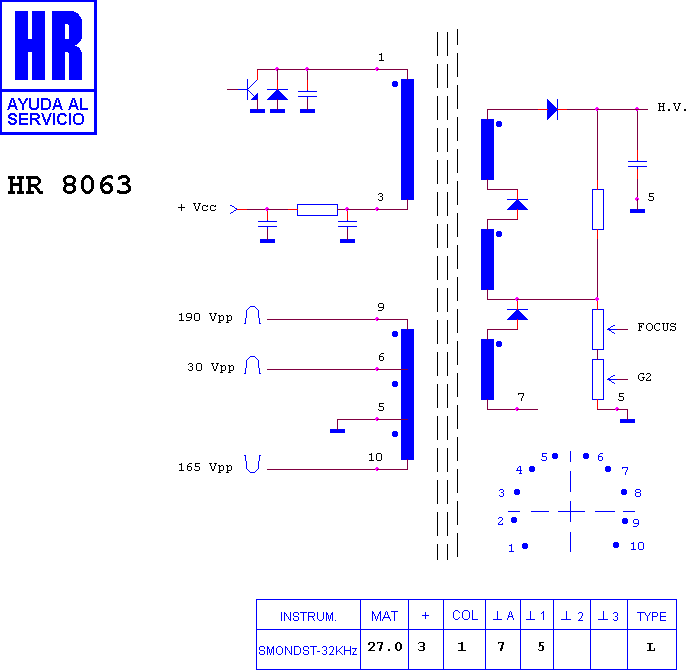

HR 8063

type SM · family 1ACP · 27 kV maximum anode voltage · L° deflection · 314 g

Manufacturer equivalents (2)

25186015 · 4-022-002

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
