HR 80505

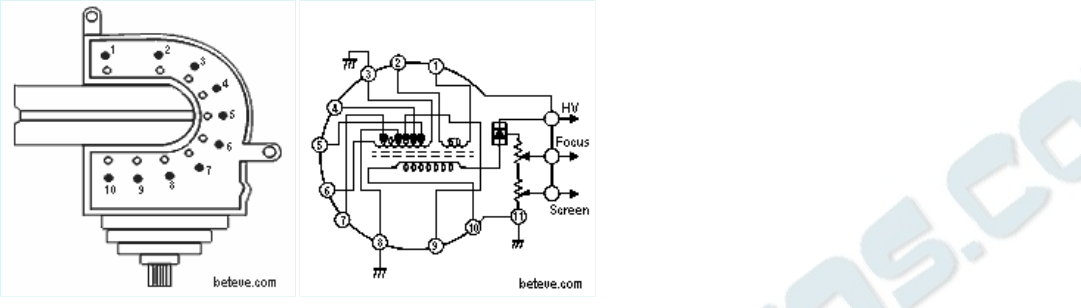

Schematic diagram for HR 80505
pin-out diagram
Schematic diagram for HR 80505
pin-out diagram

Manufacturer equivalents (10)

BCS21-2647 · F0101KM-SA · F0102KM · F0141PE-M · F0147PE · F0147PE-M · F0193PEN1-SA · F0194PEN1-SA · F02299PE-B · RTRNF0147PEZZ

Fitted to (5)

SHARP 20 LK 30 A · SHARP 201 K 30 A · SHARP 21 R 1 · SHARP 21 R 2 · SHARP 21 R-SC
