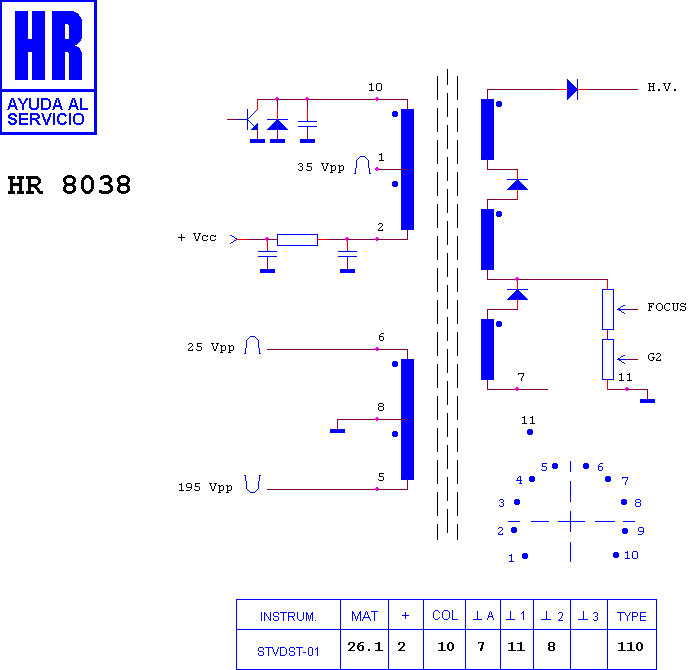

HR 8038

type ST · family 1NP1 · 26.1 kV maximum anode voltage · 110° deflection · 276 g

Manufacturer equivalents (3)

31100120 · 8038-00 · S 31100120

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.
