HR 80285

36.6 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

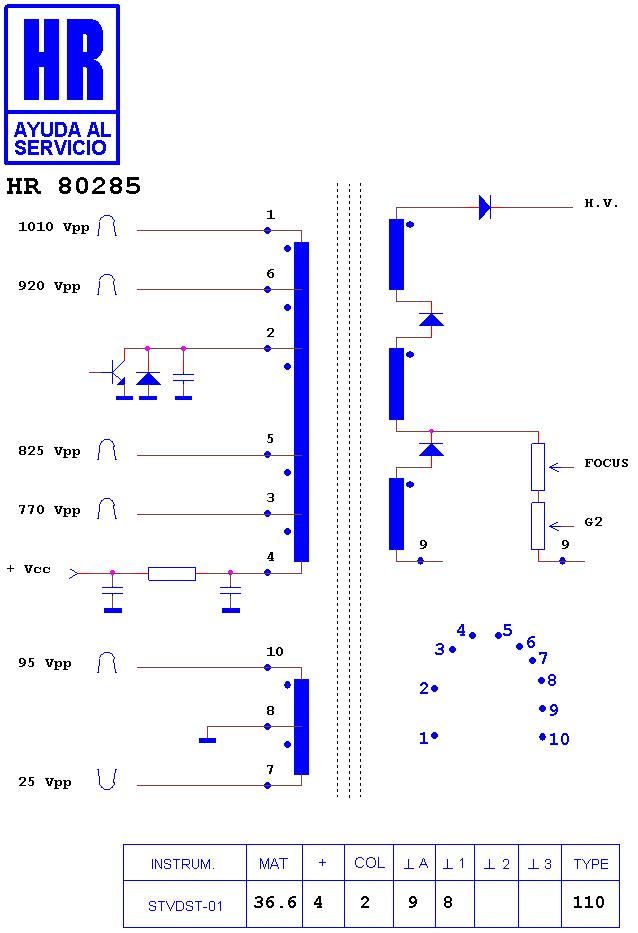

Schematic diagram for HR 80285
schematic (archived)

Manufacturer equivalents (1)

BSC27Z1001

Fitted to (5)

S W SWT 29 LF 1 · SX STV 2162 F · SX STV 2960 · VARIOS FABRICANTES SWT 29 LF 1 · XUG SWT 29 LF 1
