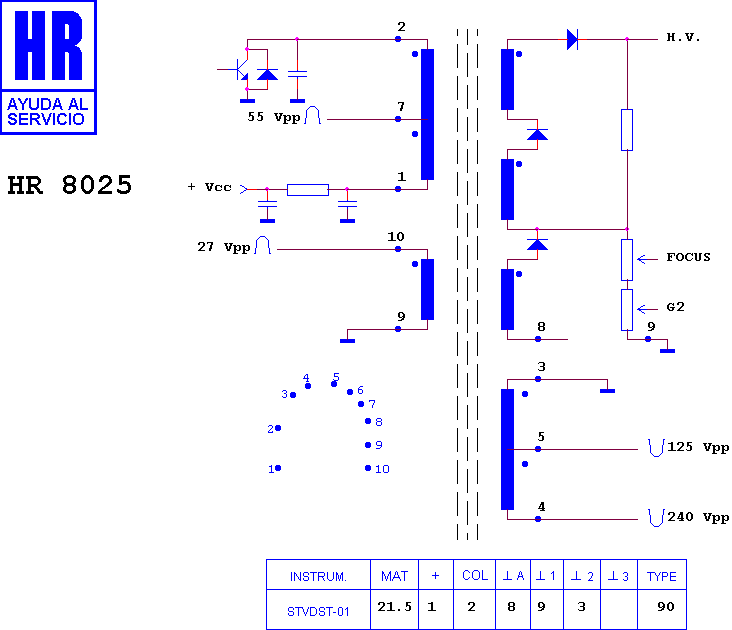

HR 8025

type ST · family 1VP2 · 21.5 kV maximum anode voltage · 90° deflection · 408 g

Manufacturer equivalents (17)

105524.50 · 10552450.P3 · 10552450P2 · 106015.30 · 10601530.P1 · 108 30970 · 108 30971 · 108 30972 · 1142.7001 · 1142.7001 A · 3130 108 3097.1 · 3130 108 30970 · 3130 108 30972 · 313C 108 30991 · 40337-26 · 40337-30 · FAT30762

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (20)

LG - GOLDSTAR CHASIS CTN · LG - GOLDSTAR CHASIS CTN/CTT · LG - GOLDSTAR CHASIS CTT · ORION G 4056 H · ORION G 519 MH · ORION TV 562 · POWERPOINT PP 2127 · PRIMA - PRIME JM 224 TXT · PRIMA - PRIME JM 244 TXT · SEI-SINUDYNE 20200 H · SEI-SINUDYNE 20210 H · SEI-SINUDYNE CHASIS TT 82 · SEI-SINUDYNE TENDER · SEI-SINUDYNE TENDER TXT · SIERA ST 21 P · SINUDYNE 20200 H · SINUDYNE 20210 H · SINUDYNE CHASIS TT 82 · SINUDYNE TENDER · SINUDYNE TENDER TXT
