HR 80079

41.4 kV maximum anode voltage · 110° deflection · 3 windings · 474 g

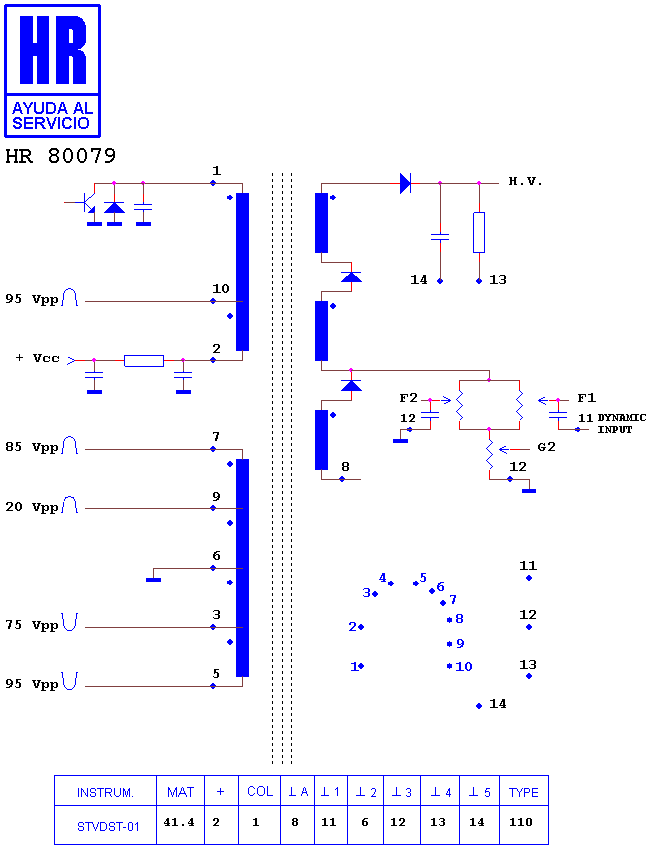

Schematic diagram for HR 80079
schematic (archived)

Manufacturer equivalents (4)

50H0000023 · 5DH0000023 · FFA65039J · FFA65039L

Fitted to (3)

DAEWOO CHASIS SC 130 · DAEWOO DCS 3270 E · DAEWOO DSC 3270 E
