HR 80038

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

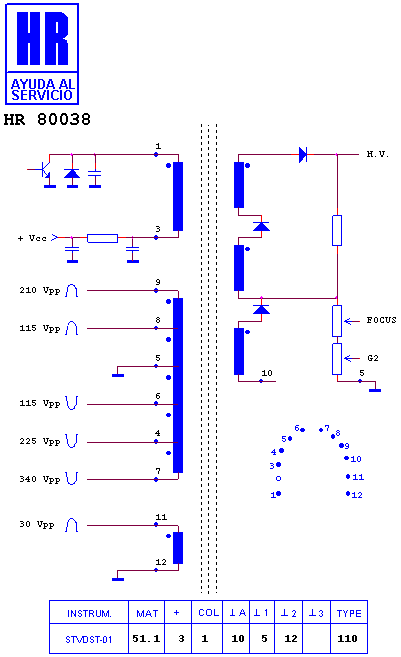

Schematic diagram for HR 80038
schematic (archived)

Manufacturer equivalents (11)

11030941271137 · 11030941273137 · 11030941463137 · 1372.0096 · 1372.00962 · 1372.0096A · 1372.0096F · 1372.8808 · 1372.8810 · 1372.8814 · HR 80038

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6558 · HR 8553 · HR 6139 · HR 6667

Fitted to (1)

SINGER S 71 WIDE 100 HZ
