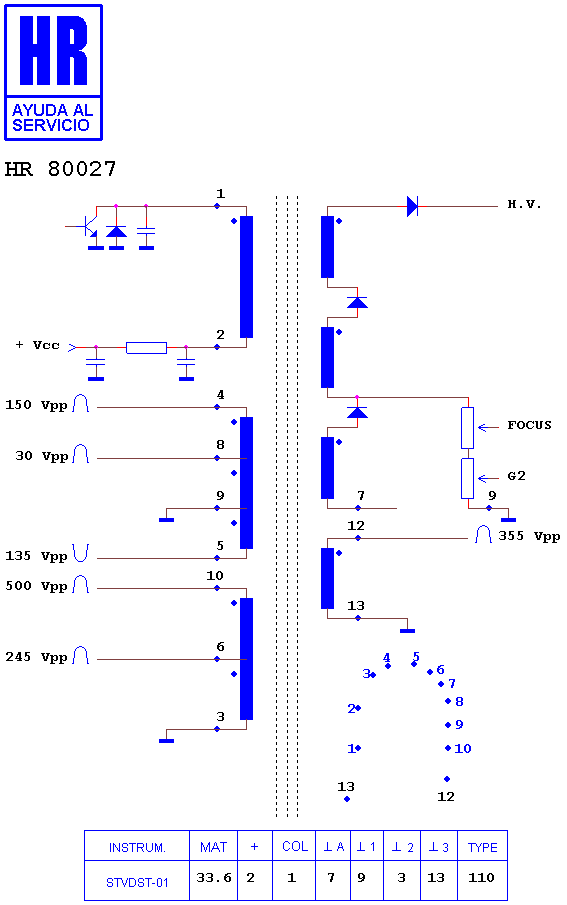

HR 80027

type ST · family 1YP · 33.6 kV maximum anode voltage · 110° deflection · 5 windings · 410 g

Manufacturer equivalents (3)

F 0012 ME · F 0012 ME-H · RTRNF0012MEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80061

Fitted to (2)

SHARP 25 GF 100 · SHARP 25 GM 60

Search this part in the full database
