HR 80018

62.5 kV maximum anode voltage · H° deflection · 3 windings · 382 g

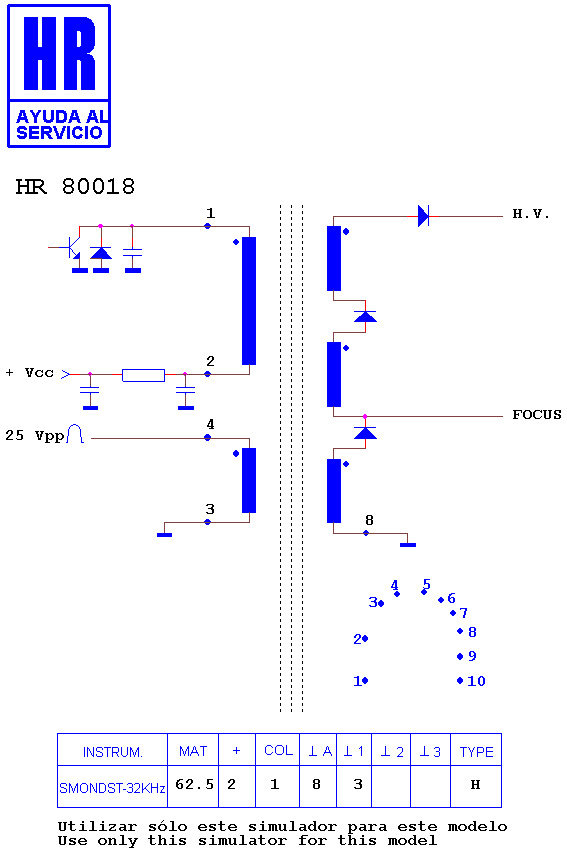

Schematic diagram for HR 80018
schematic (archived)

Manufacturer equivalents (4)

13838641 · 312213838641 · AT2091/38641 · AT2091/M38641

Fitted to (7)

PHILIPS 46 PP 9501 · PHILIPS 46 PP 9501/12 · PHILIPS 55 PP 9501 · PHILIPS 55 PP 9501/12 · PHILIPS CHASIS CML 1 · PHILIPS CHASIS CML 17 · PHILIPS CHASIS MG 5.1

Search this part in the full database
