HR 8001

type SM · family 1ACP · 19 kV maximum anode voltage · L° deflection · 4 windings · 434 g

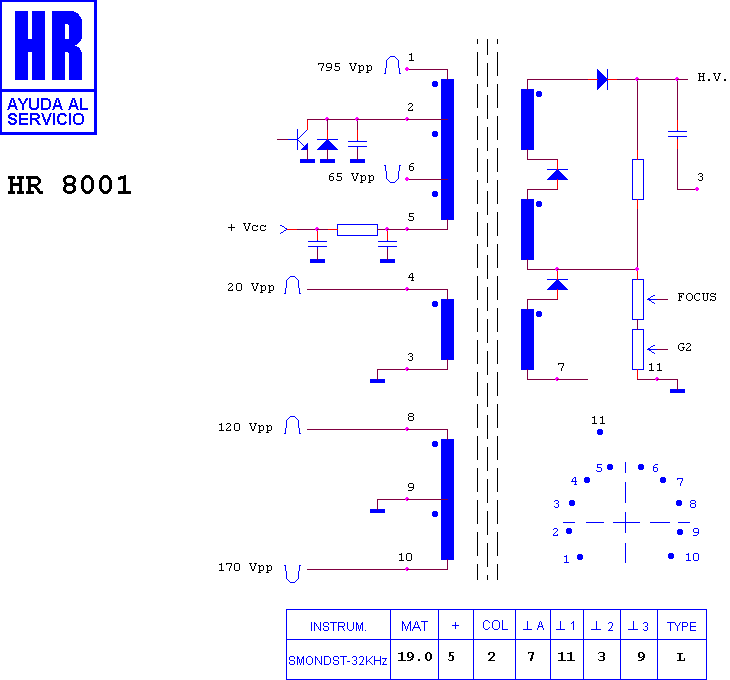

Schematic diagram for HR 8001
schematic

Manufacturer equivalents (3)

151460-11 · 4-009-002 · 473175.97

Fitted to (2)

FENICE FENICE 51 · FENICE MONITOR
