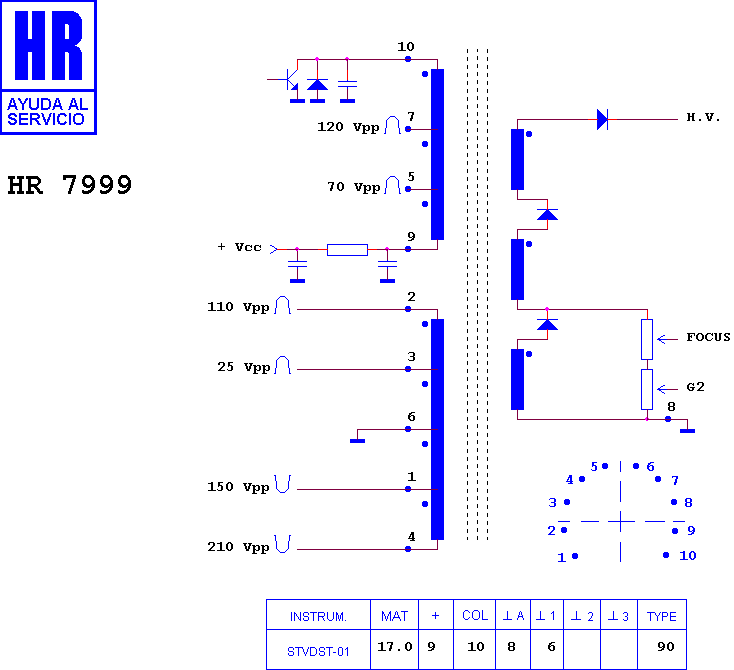

HR 7999

type ST · family 1XP1 · 17 kV maximum anode voltage · 90° deflection · 296 g

Manufacturer equivalents (1)

FCM 20 A 029

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
