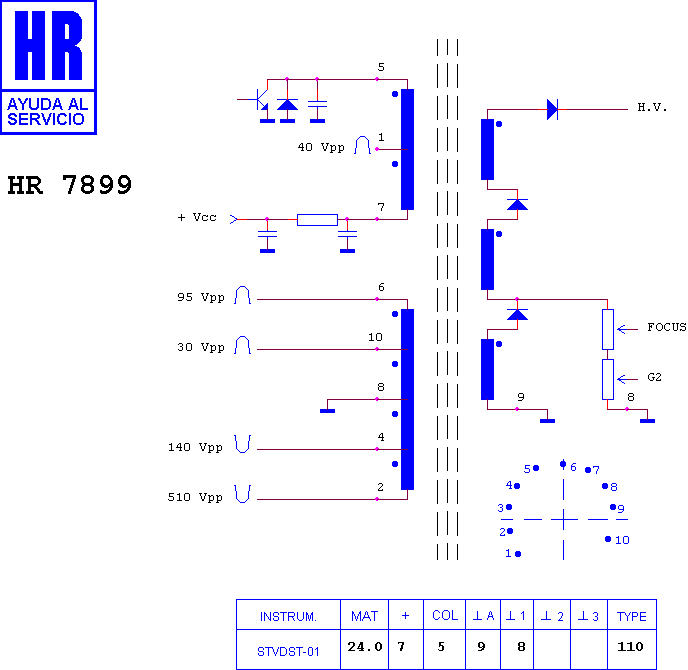

HR 7899

type ST · family 1XP1 · 24 kV maximum anode voltage · 110° deflection · 3 windings · 260 g

Manufacturer equivalents (2)

1225-145 P 3 · 154 122 S

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

LG - GOLDSTAR 1410 PLUS · LG - GOLDSTAR MONITOR
