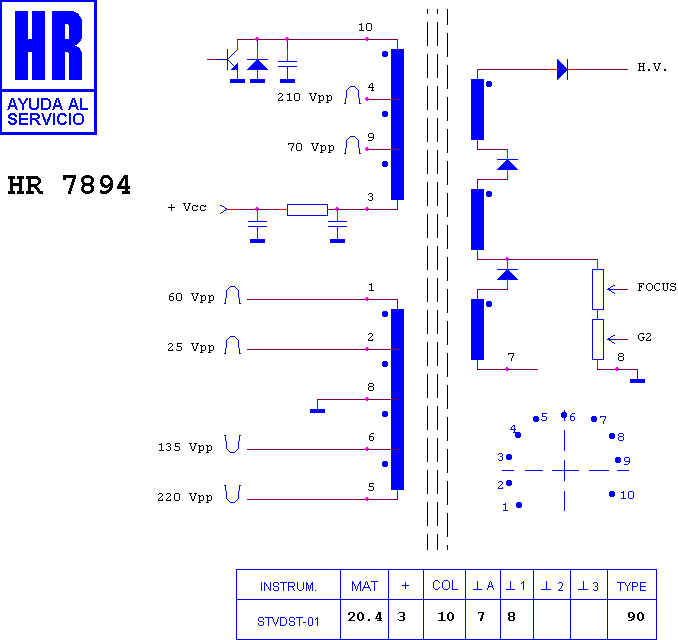

HR 7894

type ST · family 1XP1 · 20.4 kV maximum anode voltage · 90° deflection · 260 g

Manufacturer equivalents (2)

154 182 R · 154 182 S

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
