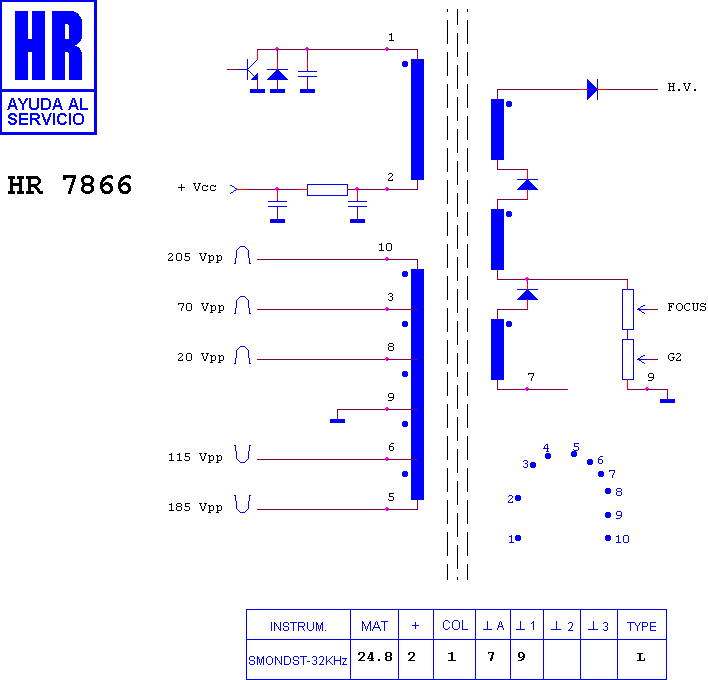

HR 7866

type SM · family 1YP · 24.8 kV maximum anode voltage · L° deflection · 396 g

Manufacturer equivalents (2)

2436652 · 2436652 A

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

HITACHI CMT 2588 · HITACHI CMT 2995 S
