HR 7845

type SM · family 1WP1 · 28.1 kV maximum anode voltage · H° deflection · 4 windings · 454 g

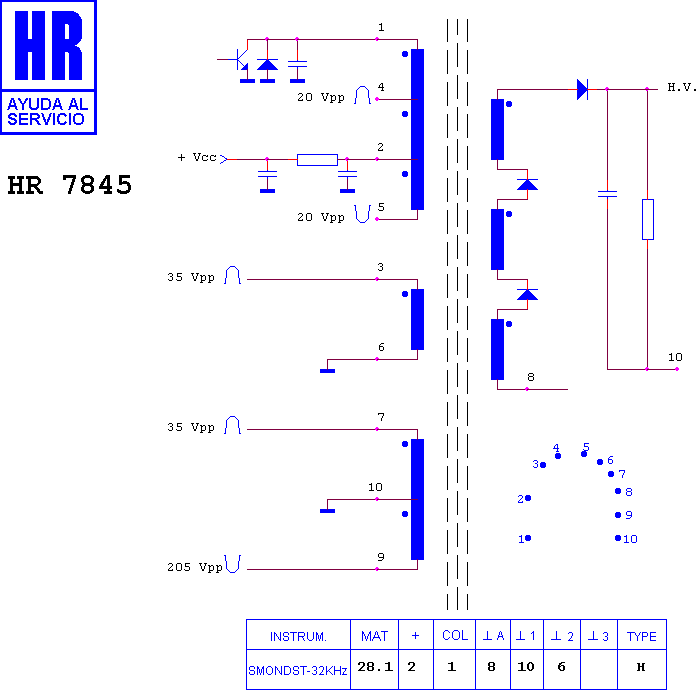

Schematic diagram for HR 7845
schematic

Manufacturer equivalents (4)

39442A · 39L442AZT · 705030431 A · ETF 39 L 442 AZT

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

EPSON ES 431 IQNL · EPSON MONITOR · ESCOM ES 431 EQNL · ESCOM ES 431 IQNL · ESCOM MONITOR
