HR 7833

type ST · family 1YP · 21.3 kV maximum anode voltage · 90° deflection · 3 windings · 370 g

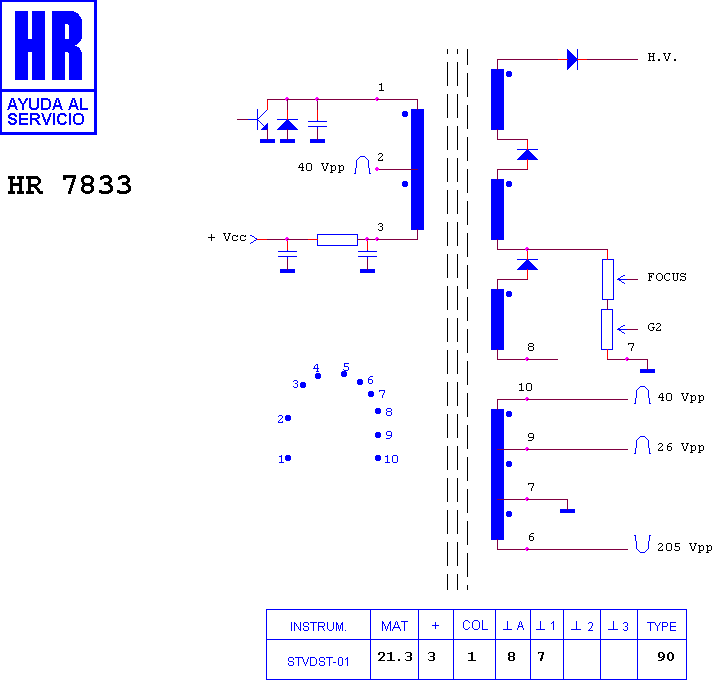

Schematic diagram for HR 7833
schematic

Manufacturer equivalents (7)

003313104 · 003323114 · 003471102 · 003491104 · 154 179 P · RO 676 · TR 676

Fitted to (8)

GOLDSTAR - LG CAT 2871 · GOLDSTAR - LG CHASIS PC 12 A · GOLDSTAR - LG CHASIS PC 12 B · GOLDSTAR - LG CIT 2570 F · GOLDSTAR - LG CIT 2871 F · GOLDSTAR - LG IGV 71 · ORION CAT 2871 · TENSAI TCTP 7025 X
