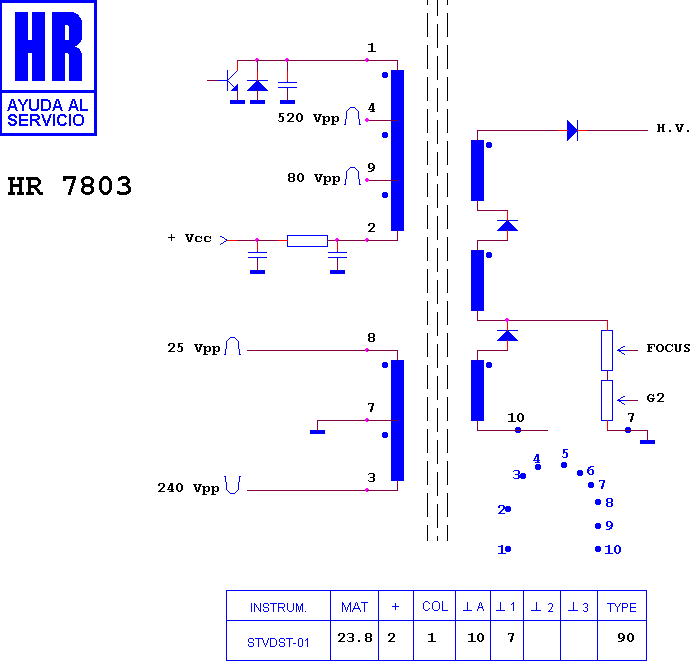

HR 7803

type ST · family 1YP · 23.8 kV maximum anode voltage · 90° deflection · 376 g

Manufacturer equivalents (12)

1302.0011 · 1302.0011 A · 1302.0111 · 1332.0004 · F 2026 BM · F 2026 BMZZ · F 2033 BM · F 2033 BMZZ · FAT 30741 · HR 7803 · RTRNF2026BMZZ · RTRNF2033BMZZ

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

SHARP CHASIS 4 BS-A · SHARP CHASIS 4 BS-B · SHARP DV 5165 · SHARP DV 5165 H · SHARP DV 5165 IR · SHARP DV 5180 · SHARP DV 5180 H · SHARP DV 5465 S · SHARP DV 5470 S · SHARP DV 5480 · SHARP DV 5480 SN
