HR 7794

type ST · family 1XP1 · 17.1 kV maximum anode voltage · 90° deflection · 264 g

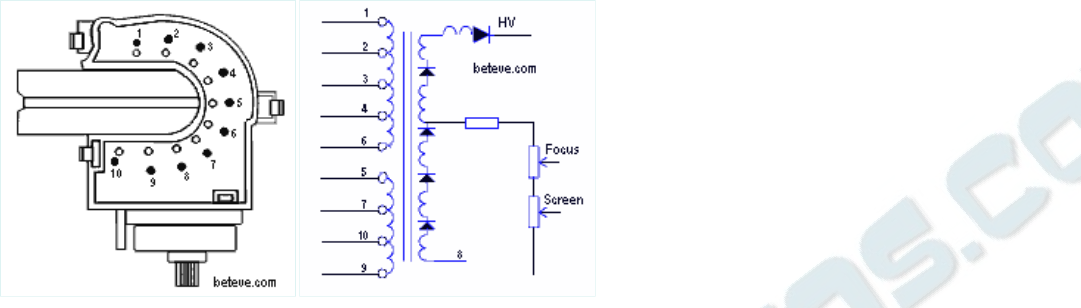

Schematic diagram for HR 7794
schematic
Schematic diagram for HR 7794
pin-out diagram

Manufacturer equivalents (3)

FCM 14 A 025 · FCM14A025A · FCM2014FL

Fitted to (5)

ETRON CI 3361 X · SAMSUNG CI 3316 F · SAMSUNG CI 3316 F/X · SAMSUNG CI 3316 X · SAMSUNG CI 3361 X
