HR 7747

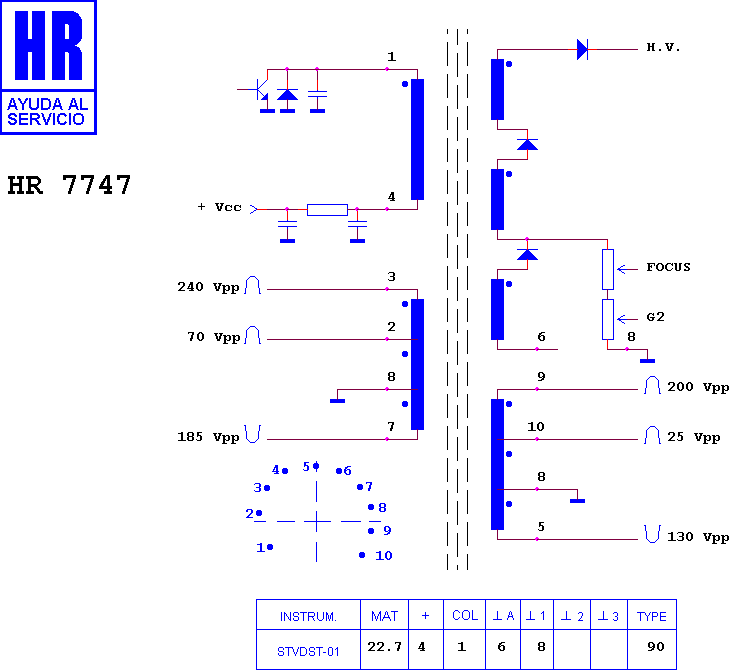

Schematic diagram for HR 7747 — schematic

Manufacturer equivalents (3)

FAT 30158 · KFS 60353 · KN 30158

Fitted to (2)

DAEWOO TCZ 2182 V · DAEWOO TCZ 2185 V

Search this part in the full database
