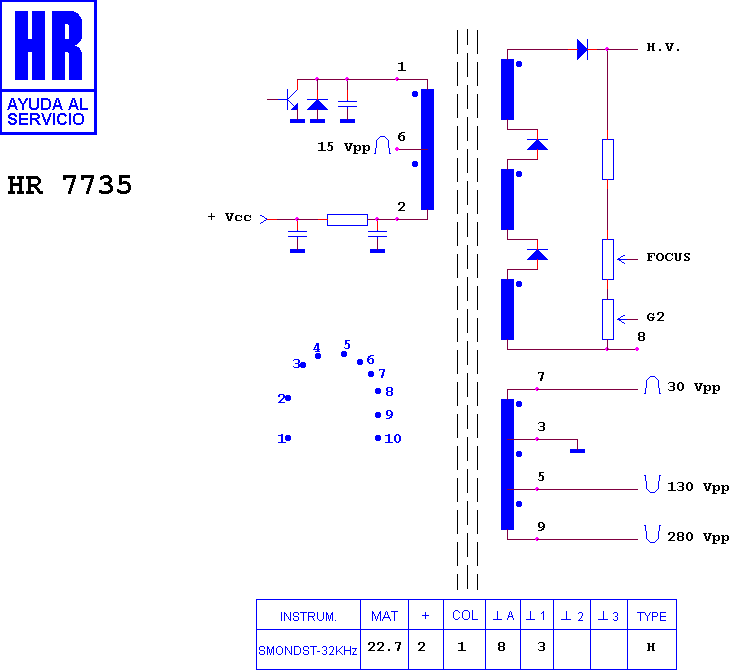

HR 7735

type SM · family 1WP1 · 22.7 kV maximum anode voltage · H° deflection · 3 windings · 474 g

Manufacturer equivalents (1)

LZ 132 A 614 T-A

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

ADI LM 1448 · ADI MONITOR · ADI MONITOR MICROSCAN · ADI MPR II
