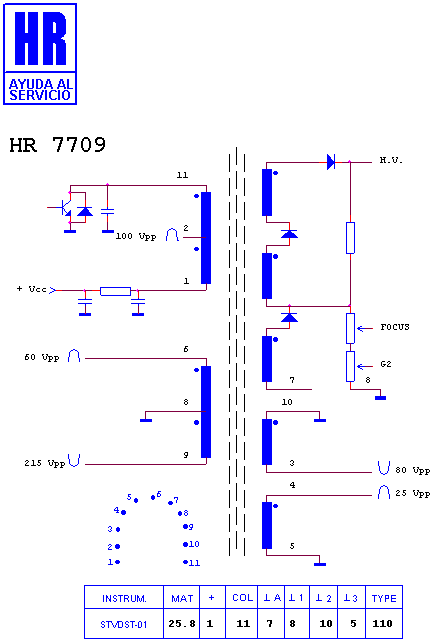

HR 7709

type ST · family 1VP2 · 25.8 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

Manufacturer equivalents (11)

003071011 · 1793 94302 · PET 22-03 · PET 23-09 · RO 265 · TDC 25 · TDKC 19 · TDKC 25 · TDKS 19 · TDS 25 · TR 265

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY. THE HR TRANSFORMER HAS THE TERMINALS PREFORMED

Fitted to (8)

HORIZONT 51 CTV 510 D · HORIZONT 51 CTV 510 E · HORIZONT 510 CX · HORIZONT CTV 510 · HYPER 51 CTV 510 E · HYPER ANTIGUA 21 · STANDARD CTV 510 · TERFON 42-51 90§
