HR 7703

type ST · family 1XP1 · 20.7 kV maximum anode voltage · 90° deflection · 290 g

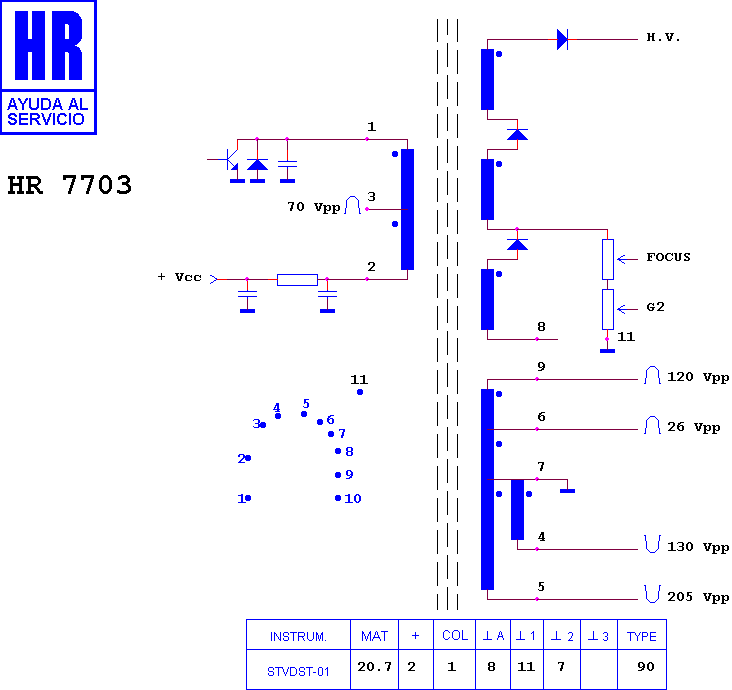

Schematic diagram for HR 7703 — schematic

Manufacturer equivalents (1)

154 277 A

Search this part in the full database
