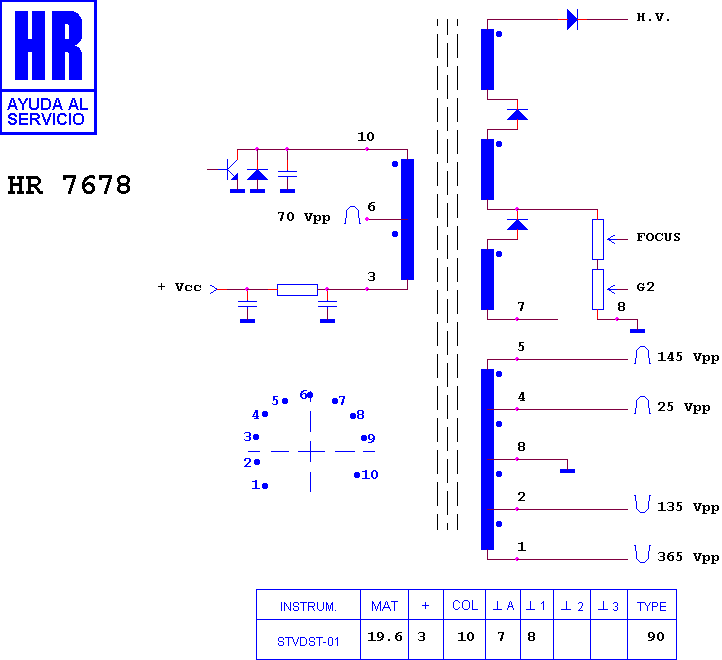

HR 7678

type ST · family 1XP1 · 19.6 kV maximum anode voltage · 90° deflection · 290 g

Manufacturer equivalents (3)

047 105 198 · 17.848 · 471051.98

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

ELBE 1402 · ELBE CHASIS NEC 90§ · ELBE TVC 1402 · ELBE TVC 1602 · ELBE TVC 511 · ELBE TVC 511 YDH · NEC CT 1404 · NEC CT 1404 PI · NEC CT 1406 · NEC CT 1406 PI · NEC N 1416

Search this part in the full database
