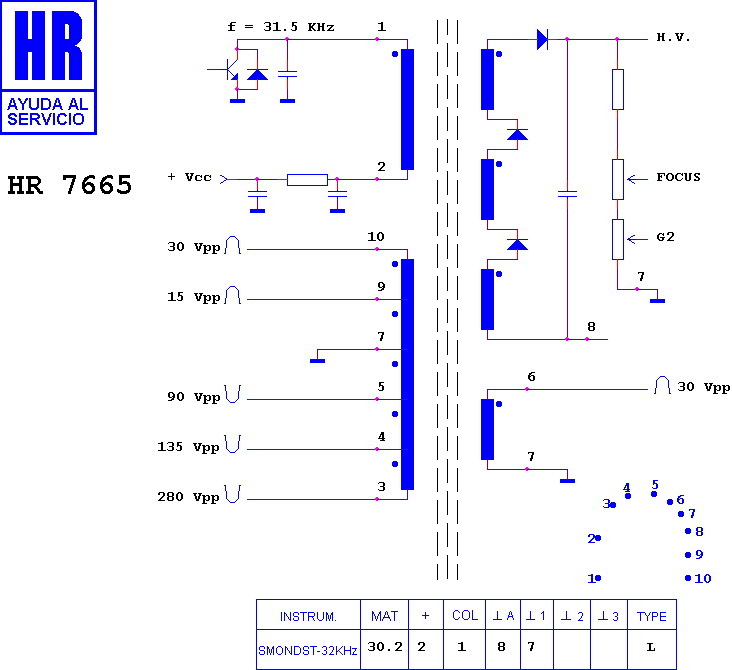

HR 7665

type SM · family 1WP1 · 30.2 kV maximum anode voltage · L° deflection · 420 g

Manufacturer equivalents (8)

154 156 A · 154 166 A · 180 679 A · 4861600 · MAT 33436 · MSH-1FFE12 · MSU-1FFE12 · ORF 0221 H 609

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (20)

ATARI 1424 · ATARI MONITOR · ATARI PCC 1424 · DELL 1425 · DELL MONITOR · DELL UC 2 E · DELL VC 2 E · LG - GOLDSTAR 1423 + · LG - GOLDSTAR 1423 PLUS · LG - GOLDSTAR 1425 · LG - GOLDSTAR 1430 · LG - GOLDSTAR 1430 PLUS · LG - GOLDSTAR MCH 4335 · LG - GOLDSTAR MONITOR · LG - GOLDSTAR VC 2 E · SCHNEIDER MONITOR · SCHNEIDER VCM 14 · TAXAN MONITOR · TAXAN SV 785 EV · TAXAN VC 2 E
