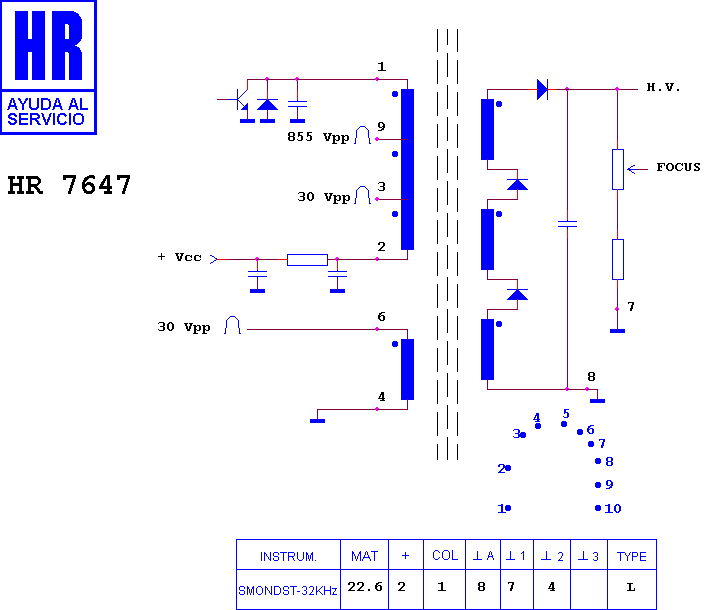

HR 7647

type SM · family 1WP1 · 22.6 kV maximum anode voltage · L° deflection · 3 windings · 456 g

Manufacturer equivalents (11)

003 101 102 · 240120.4070 · 25 F 8803 · 3101102 · MAT 33110 · MSH-1FFE27 · MSH-1FFE47 · MSU-1FFE27 · MSU-1FFE47 · RO 069 · TR 069

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

IBM 3472 · IBM 3472 INFOWINDOW · IBM 3477 · IBM C 20 · IBM MONITOR
