HR 7635

type ST · family 1YP · 20.6 kV maximum anode voltage · 90° deflection · 5 windings · 384 g

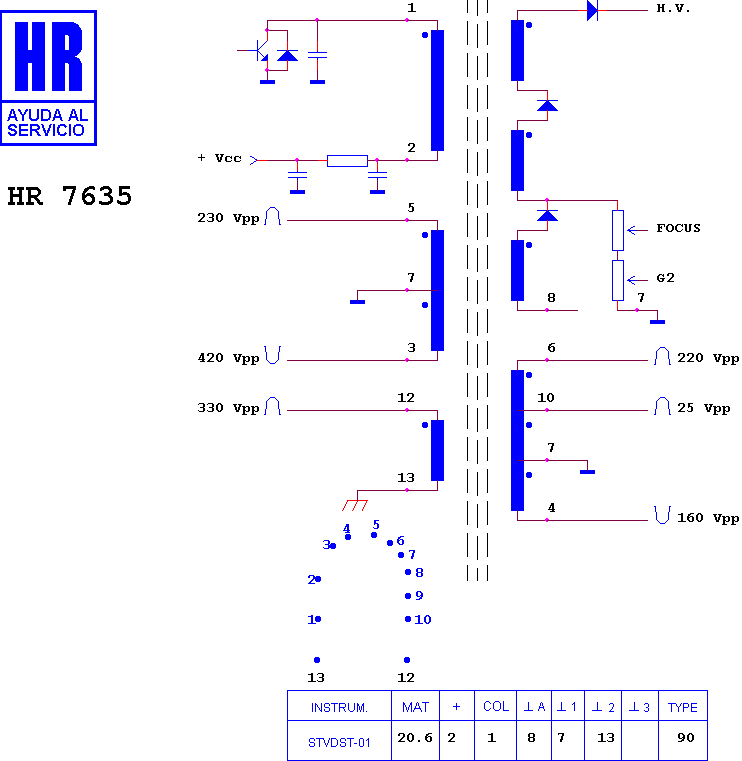

Schematic diagram for HR 7635
schematic

Manufacturer equivalents (6)

F 0036 CE · F 0036 PE · F 0036 PE-M · F0036ME-H · RTRNF0036CEZZ · RTRNF0036PEZZ

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

SHARP 25 RC 119 · SHARP 25 RC 169 · SHARP 25 RC 179 · SHARP 25 RT 59 · SHARP 25 RV 69 · SHARP 25 RV 79
