HR 7615

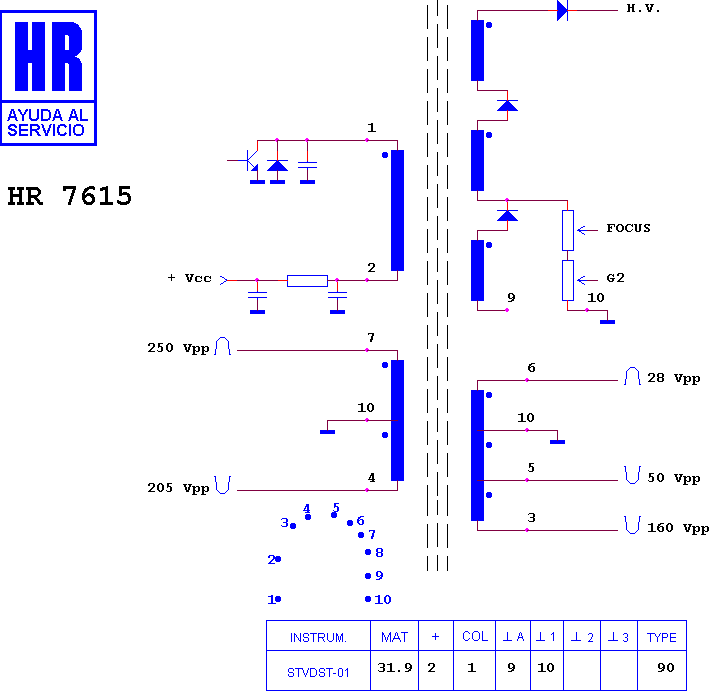

Schematic diagram for HR 7615
schematic

Manufacturer equivalents (1)

TLF 14427 F

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
