HR 7576

type ST · family 1NP · 22.4 kV maximum anode voltage · 90° deflection · 259 g

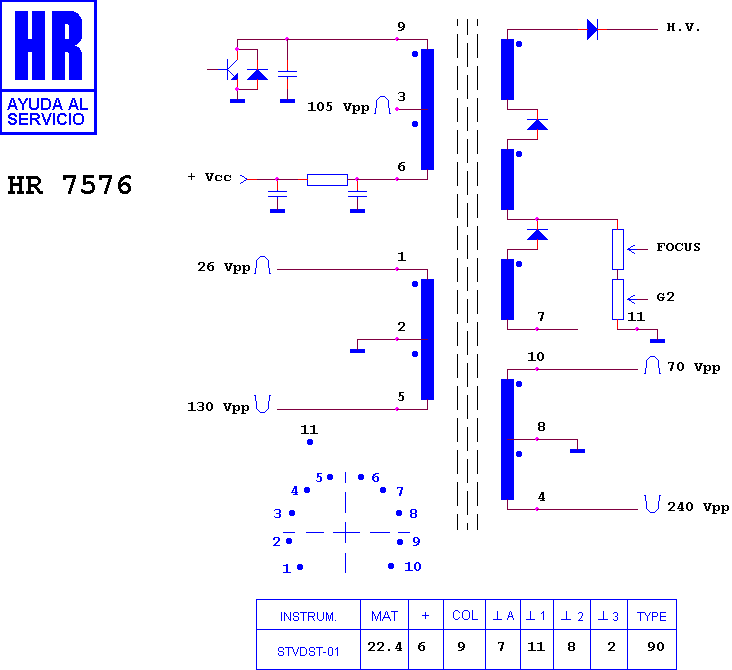

Schematic diagram for HR 7576 — schematic

Manufacturer equivalents (1)

HR 7576-00

Search this part in the full database
