HR 7551

type ST · family 1NP · 22.1 kV maximum anode voltage · 90° deflection · 263 g

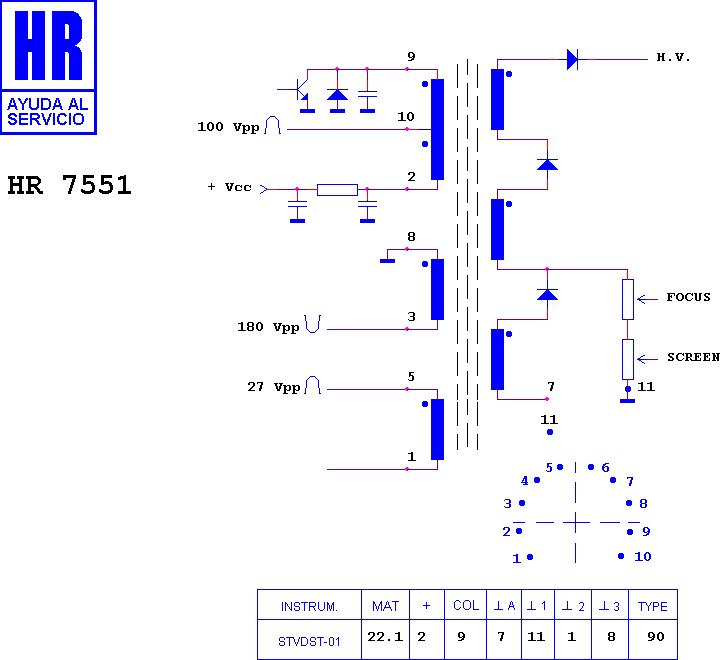

Schematic diagram for HR 7551
schematic

Manufacturer equivalents (2)

37.859 · HR 7551

Fitted to (3)

ELBE 2110 · ELBE CHASIS E 16 E 21 · ELBE CHASIS E 16-21
