HR 7547

type SM · family 1NS · 23.9 kV maximum anode voltage · H° deflection · 4 windings · 250 g

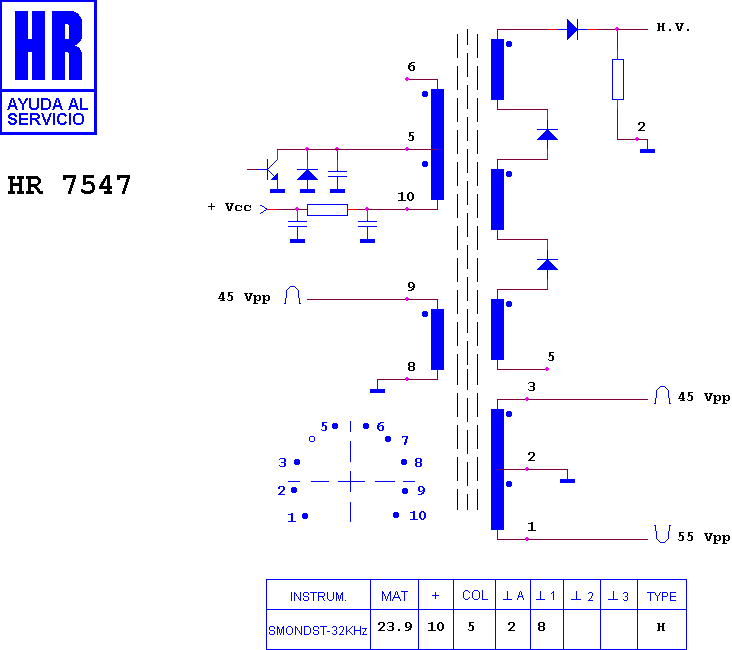

Schematic diagram for HR 7547
schematic

Manufacturer equivalents (2)

46 450 0004 · MAT33230

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7931

Fitted to (6)

NIXDORF 97801 · NIXDORF 97801-480 · NIXDORF MONITOR · SIEMENS 97801 · SIEMENS 97801-480 · SIEMENS MONITOR
