HR 7542

type ST · family 1NP · 27 kV maximum anode voltage · 90° deflection · 3 windings · 261 g

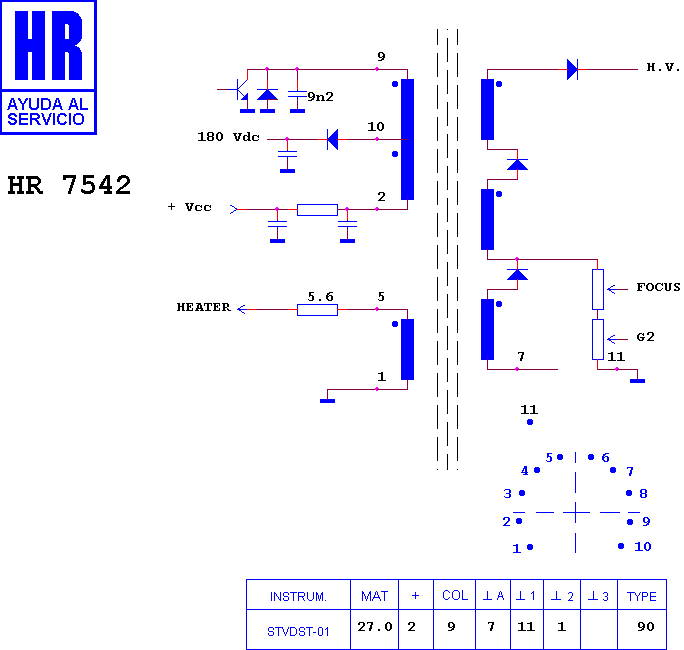

Schematic diagram for HR 7542
schematic

Manufacturer equivalents (1)

37.853

Fitted to (5)

ELBE 14 EM 11 · ELBE BASICO 14" · ELBE CHASIS E 16 B · ELBE CHASIS E 16 E · ELBE CHASIS E 17

Search this part in the full database
