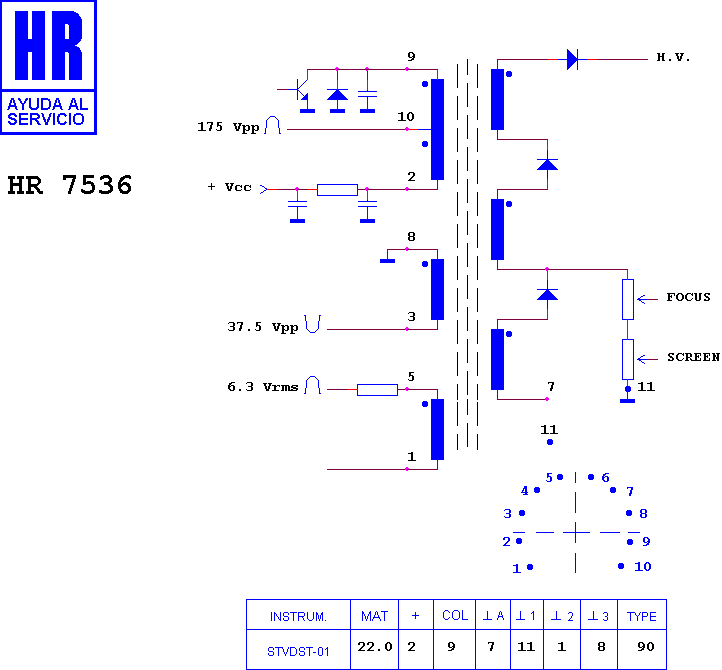

HR 7536

type ST · family 1NP · 22 kV maximum anode voltage · 90° deflection · 3 windings · 263 g

Manufacturer equivalents (4)

30015.00 · 30015.01 · 37.850 · 37.852

Fitted to (8)

ELBE 2110 · ELBE BASICO 2110 · ELBE CHASIS E 16-21 · ELBE TVC 2110 · ELBE TVC 2110 MD · ELBE TVC 2110 TXT · IBERIA CHASIS E 16 · IBERIA SIERRA 14
