HR 7506

type ST · family 1NP · 17.8 kV maximum anode voltage · 90° deflection · 3 windings · 261 g

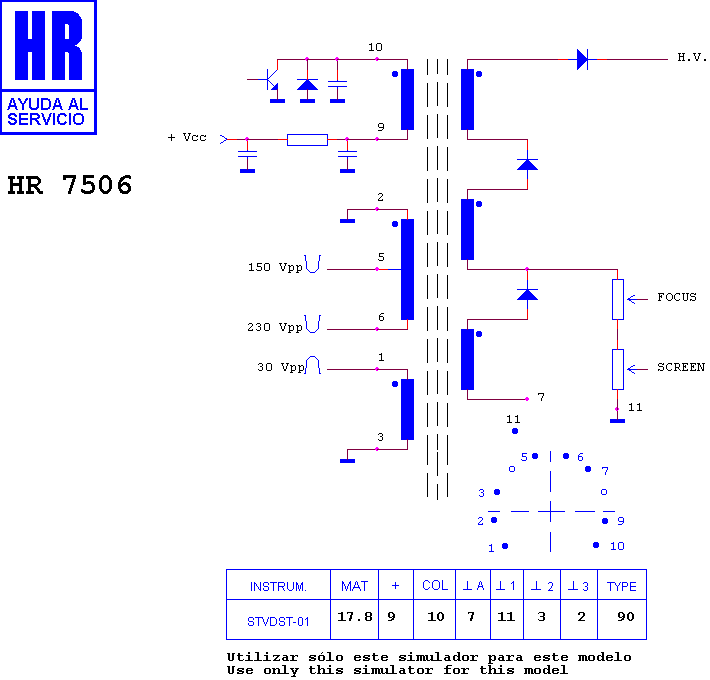

Schematic diagram for HR 7506
schematic

Manufacturer equivalents (40)

003071029 · 108 30100 · 108 30101 · 108 30103 · 1142.1395 · 140 10349 · 14630483 · 30100 · 30101 · 30102 · 30103 · 30104 · 30105 · 30106 · 30107 · 30108 · 30109 · 3138 108 30100 · 3138 108 30101 · 3138 108 30103 · 3138 138 30100 · 313810830109 · 314892-01 · 4812 140 10349 · 4822 140 10349 · 482214630483 · 602202-39 · 602202-69 · 724 678 8 · AT 2075-30102 · AT 2079-30101 · AT 2079-30102 · BSC 23-08616 · KN35063N · MAT33410 · ME/0334-10 · ME/6338-00 · RO 654 · TR 272 · TRR 349

Fitted to (42)

COMMODORE 1081 · COMMODORE 1084 · COMMODORE 1084 P · COMMODORE 1084 S · COMMODORE 1084 S-P · COMMODORE 1084 SP · COMMODORE CM 8833 · COMMODORE CM 8833-00 G · COMMODORE MONITOR · MAGNAVOX CM 8505 · MAGNAVOX CM 8762 · MAGNAVOX MONITOR · PHILIPS 8 CM 852/30 B · PHILIPS 8 CM 852/35 B · PHILIPS 8 CM 852/36 B · PHILIPS C 1 D 5332/721 · PHILIPS C 1 D 5332/741 · PHILIPS C 1 D 5432 · PHILIPS C 1 G 7301/004 · PHILIPS C 1 G 7301/741 · PHILIPS C 1 H 5362/058 · PHILIPS CHASIS CM 85 · PHILIPS CHASIS CM 86 · PHILIPS CHASIS CM 87 · PHILIPS CHASIS CM 88 · PHILIPS CHASIS CM 8833-00 · PHILIPS CM 85 · PHILIPS CM 86 · PHILIPS CM 87 · PHILIPS CM 88 · PHILIPS CM 8801 · PHILIPS CM 8801/05 G · PHILIPS CM 8802 · PHILIPS CM 8802/05 G · PHILIPS CM 8832/05 G · PHILIPS CM 8833 · PHILIPS CM 8833/00 G · PHILIPS CM 8833/05 G · PHILIPS CM 8852/35 G · PHILIPS MONITOR · SPRING 1084 · SPRING MONITOR
