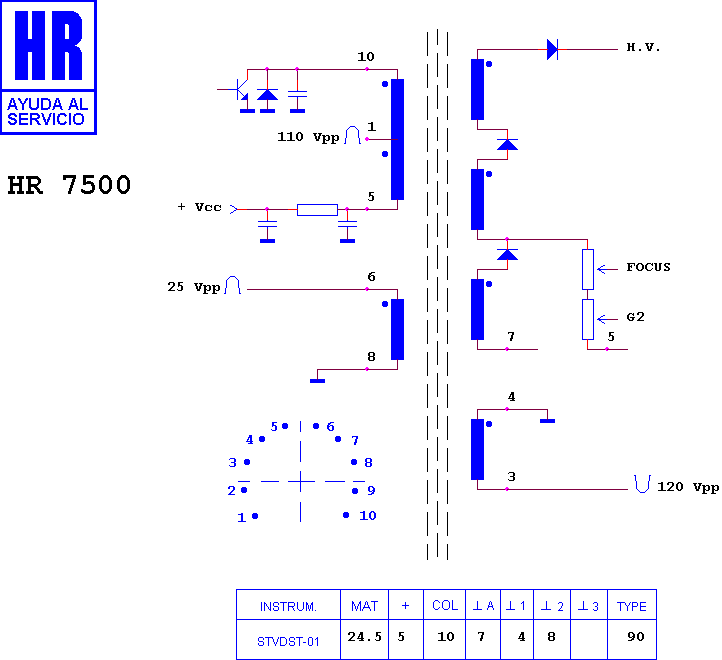

HR 7500

type ST · family 1NP1 · 24.5 kV maximum anode voltage · 90° deflection · 278 g

Manufacturer equivalents (7)

003031109 · 140 10352 · 2435191 · 4822 140 10352 · BSC 22-08617 · RO 295 · TR 295

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (19)

PHILIPS 21 CN 4060 · PHILIPS 21 CN 4060/75 · PHILIPS 21 CN 4460/50 R · PHILIPS 21 CN 4460/56 R · PHILIPS 21 CN 4460/57 R · PHILIPS 21 CN 4460/59 P · PHILIPS 21 CN 4460/59 R · PHILIPS 21 CN 4461 · PHILIPS 21 CN 4461/93 R · PHILIPS 21 CN 4461/93 S · PHILIPS 21 CN 4462 · PHILIPS 21 CN 4462/59 R · PHILIPS 21 CN 4761 · PHILIPS 22 CN 4462 · PHILIPS 55 C 815 · PHILIPS C 815 NCF · PHILIPS CHASIS C 815 · PHILIPS CHASIS NCF · PHILIPS CHASIS NCF D 85
