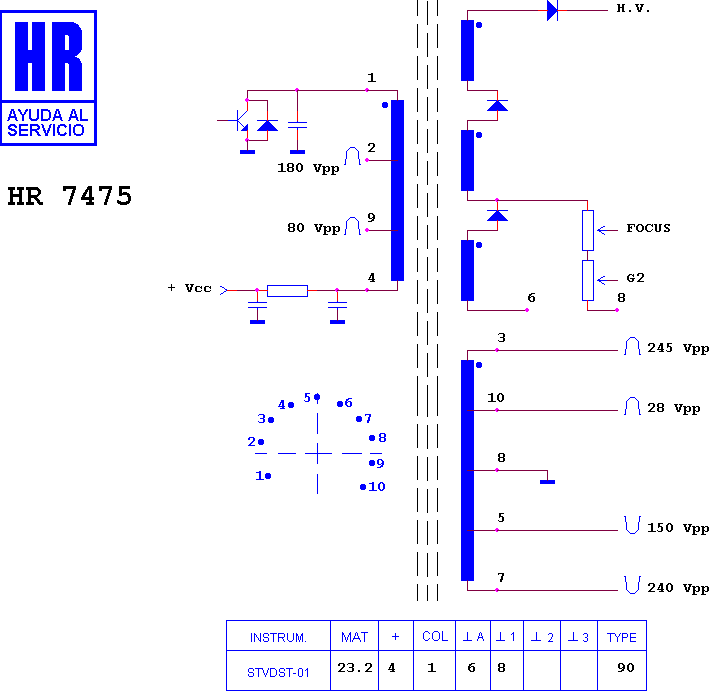

HR 7475

type ST · family 1XP1 · 23.2 kV maximum anode voltage · 90° deflection · 262 g

Manufacturer equivalents (5)

50 H 0000096 · FAT 30690 · FAT30777 · KFS 60802 · KN 30690

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (8)

DAEWOO CHASIS C 520 B · DAEWOO DTV 2044 · DAEWOO DTV 2049 · DAEWOO DTV 2049 TS · DAEWOO DTV 2057 · FENNER CHASIS E 5 · FENNER FTV 2121 · TEMPEST TE 20 RMT
