HR 7450

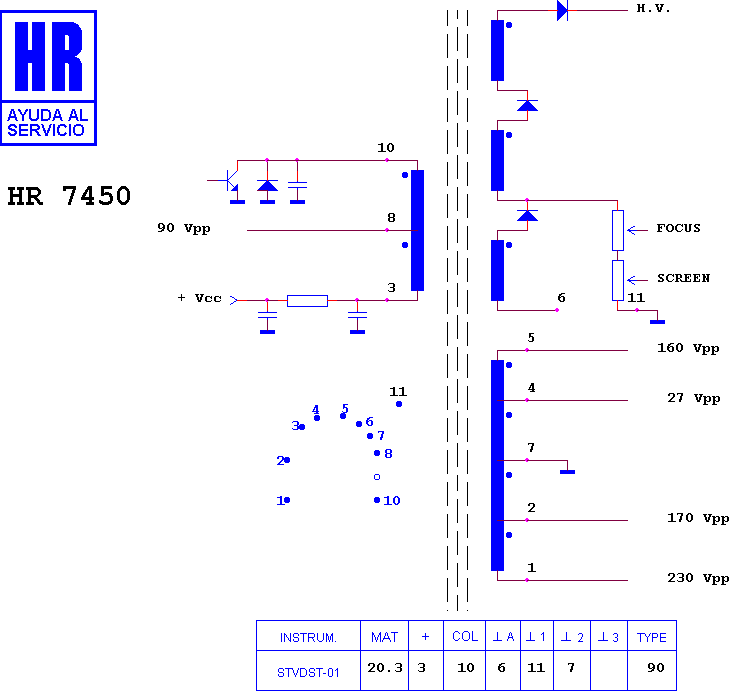

Schematic diagram for HR 7450 — schematic

Manufacturer equivalents (1)

5908-05015A-AA

Fitted to (1)

NIKKAI TLG 1410

Search this part in the full database
